The Muzzleloader

The Muzzleloader

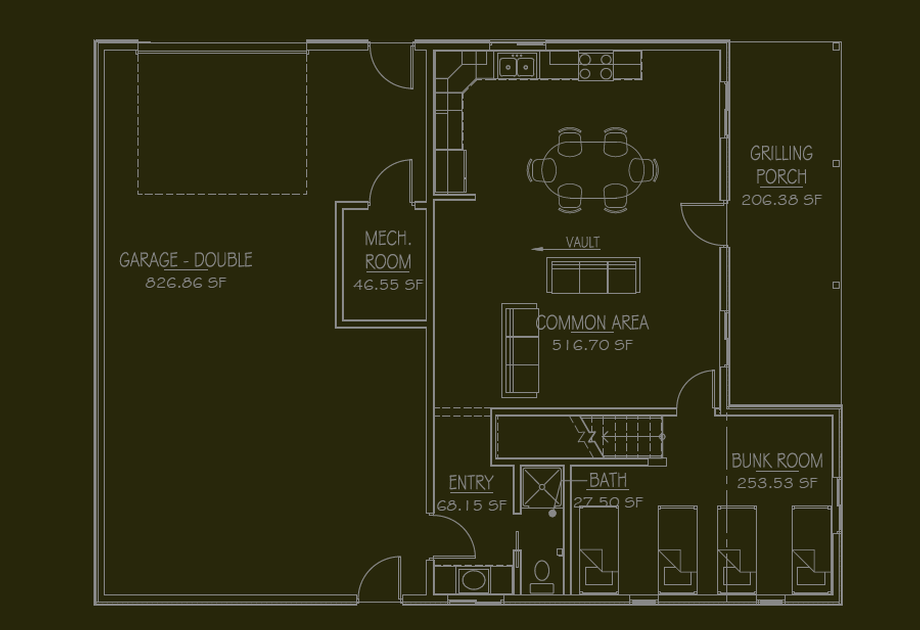

2010 Sq Ft: 952 (1st Floor) 98 (loft) 960 (storage)

The Muzzleloader is designed for the outdoorsman who wants maximum usable space in an attractive design. This building includes a bunk area, which allows you to sleep 6-8people comfortably. The covered porch provides a place to grill and relax in comfort, while the large storage area acts as a toy chest for boats, four-wheelers, and the like. For the ultimate sportsman’s get-away in a maintenance-free package, the Muzzleloader delivers.

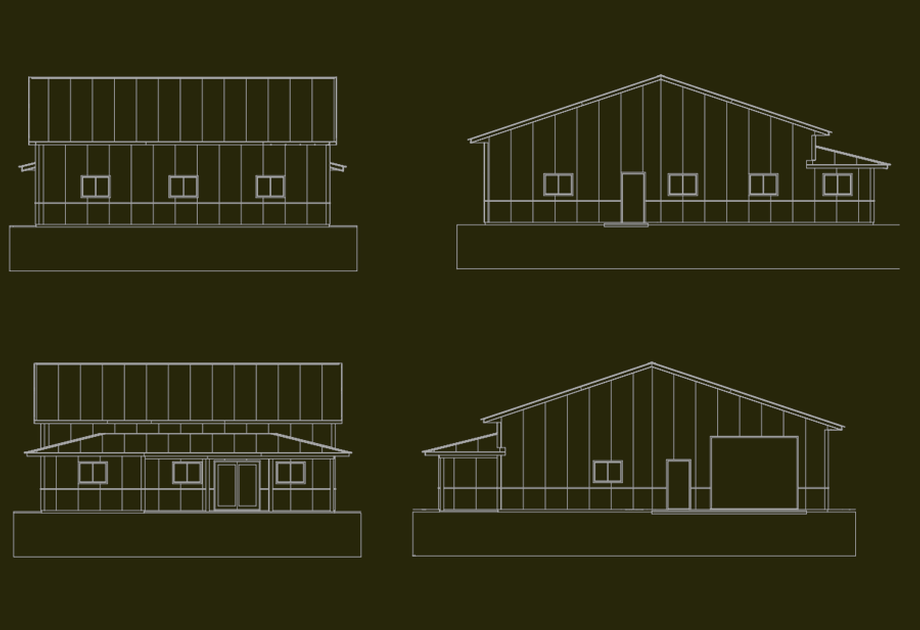

Building Exterior Specifications

  • 53' x 40' x 11' & 12' stud wall construction

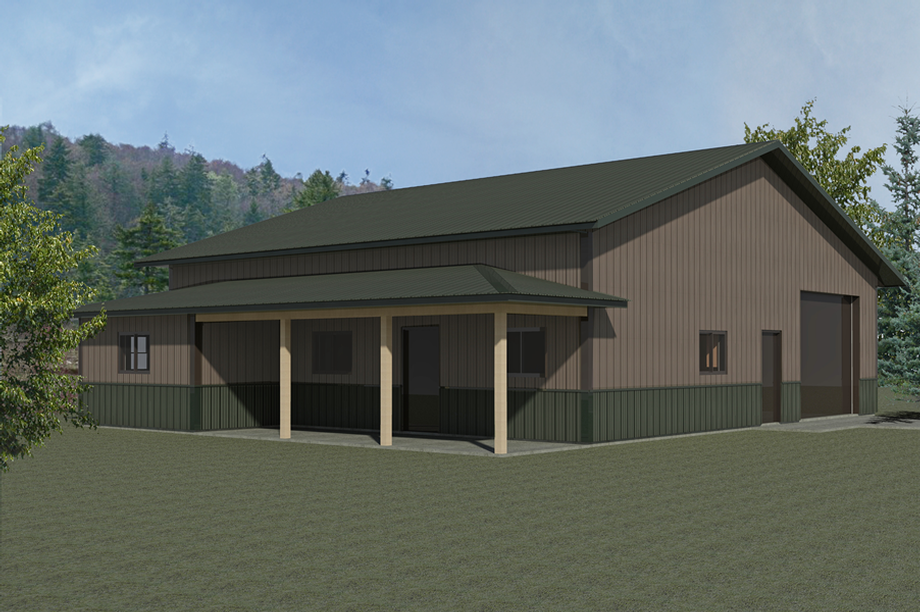

  • (1) 8' x 26' covered grilling porch
  • Perimeter 2×6 studs to be 24" on center
  • Main Roof trusses to be 24" pitch – 29" o.c. with energy heel. Porch trusses to be 3:12 pitch
  • All exterior wall and roof steel to be McElroy 29 ga. Max Rib with Kynar 500 paint system and 40 year non-prorated warranty
  • All steel to be fastened using Woodgrip fasteners
  • All steel trims at ridge, gables, corners, windows, doors, base, hips and valleys, fascia, header, ceiling, etc. to be 29 ga. with Kynar 500 paint system.
  • Continuously vented profile ridge vent.
  • All eaves to be sealed using profile foam closures.
  • 24" deep overhangs to be finished using aluminum or steel vented soffit panels.
  • Windows to be vinyl white horizontal sliding units. Alternate color options are available upon request.
  • Doors to be all maintenance free steel doors and aluminum and frames with locksets. Various options are available
  • Exterior Patio door to be vinyl unit with screen door.
  • (1) 12 × 8 insulated overhead door. Operator available upon request.
  • Housewrap at all walls to eave line.
  • All walls to be insulated using R-21 batt insulation with a 4 mil poly vapor barrier at warm side of wall.
  • Ceiling to be insulated using R-40 blown fiberglass insulation with a 4 mil poly vapor barrier at warm side of ceiling.
  • Porch to have steel ceiling and trim.
  • Exposed porch header and support posts.

Building Interior Specifications

  • Interior stud walls to be 2×4 and 2×6 construction with studs 24" on center
  • Interior doors to be pine doors with casing at both sides with lockset.
  • Vaulted trusses with lofted living area.
  • Fully installed kitchen and bath cabinetry.
  • Bi-Fold closet doors to be pre-hung doors with casing at both sides and pull knobs.
  • Base trim to be 1×4 pine at all finished walls.
  • Windows to be prepped for drywall returns and pine sill with apron casing.
  • Closets to have one shelf with angle brackets and closet pole.
