The Silhouette

The Silhouette
1104 Sq Ft

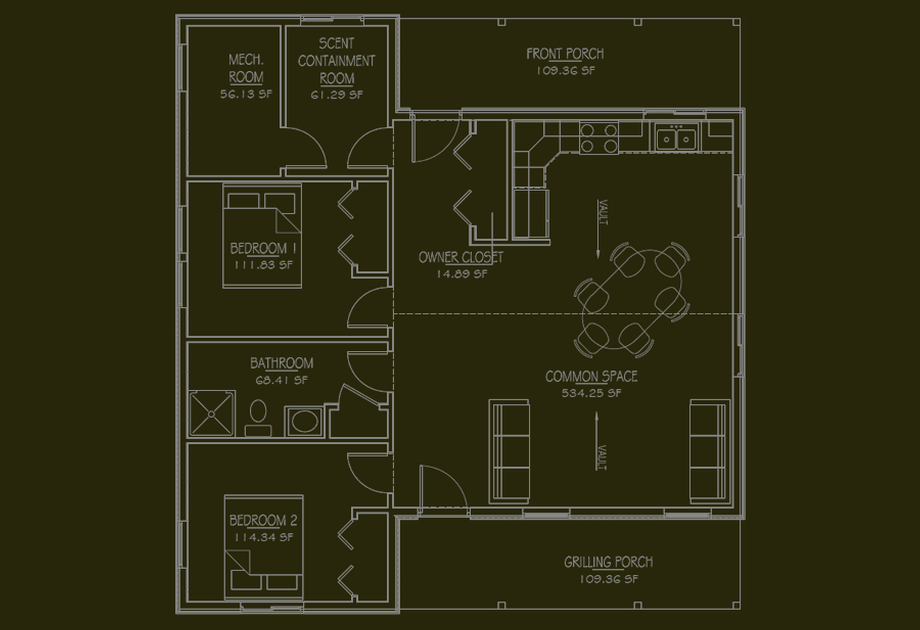

The Silhouette has a unique cabin design with two covered porches, two bedroom built-in closets, and the industry exclusive scent containment room. The Silhouette has it all. Whether you and your family want a get-away cabin or you’re spending the weekend hunting with friends, the Silhouette is the ideal choice.

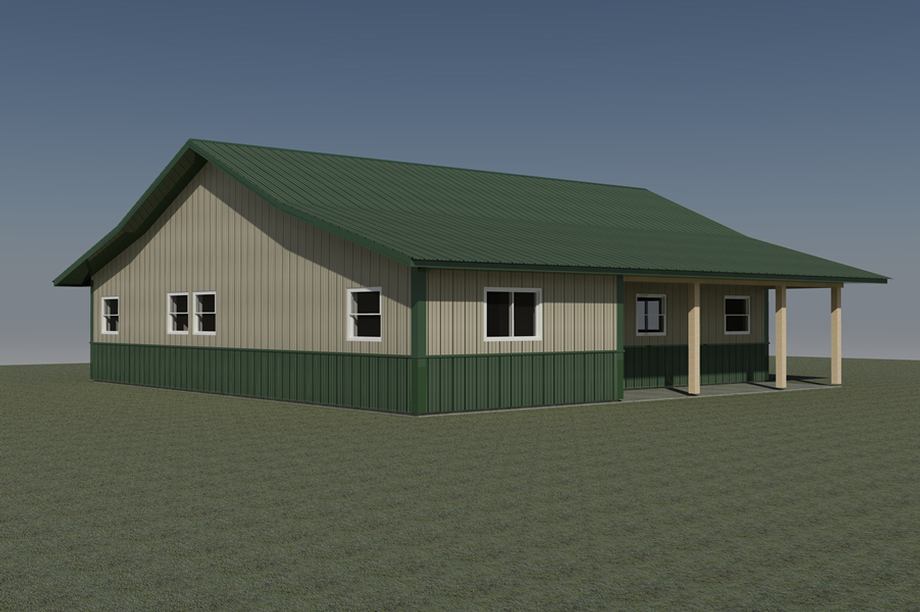

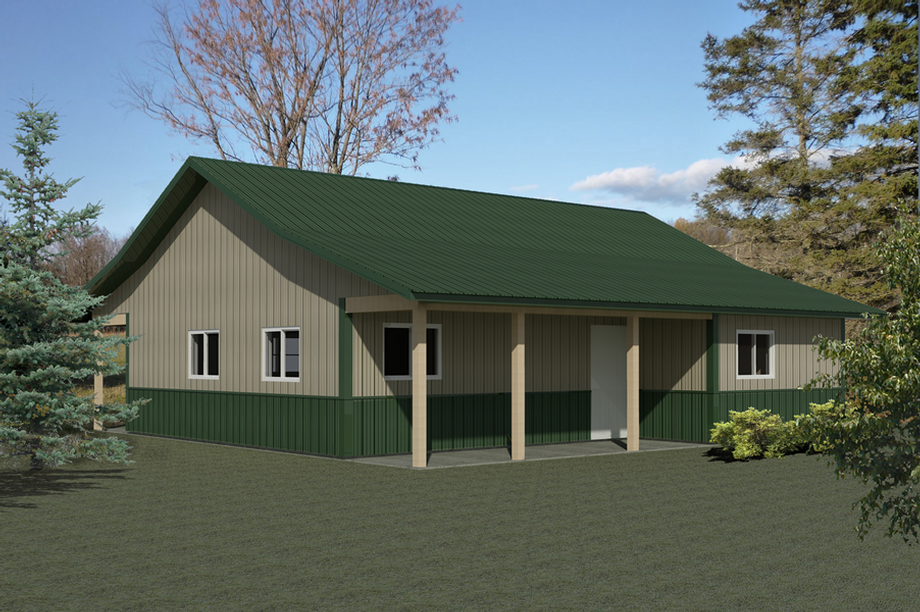

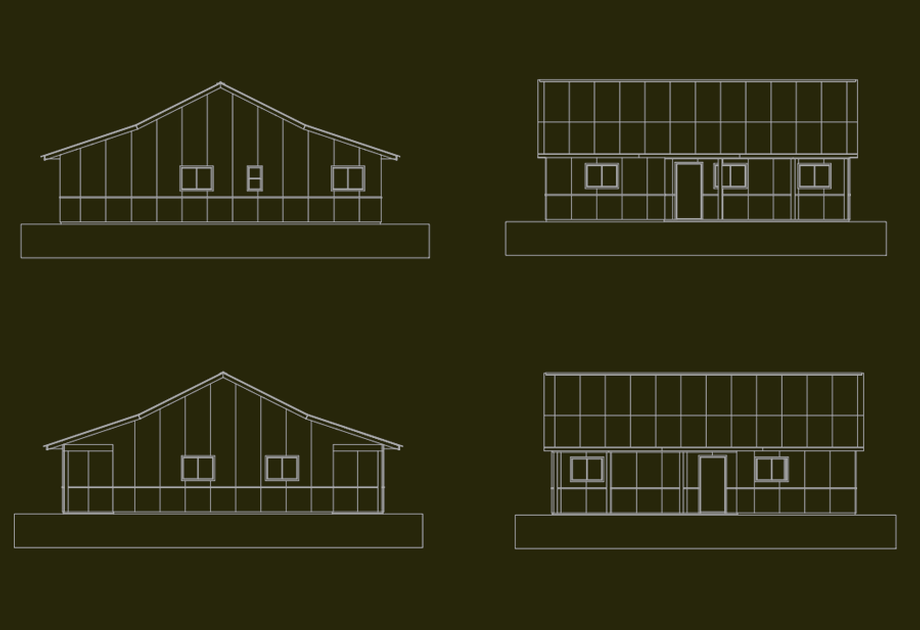

Building Exterior Specifications

  • 36' x 38' x 9' stud wall construction
  • (2) 6' x 22' covered porches.
  • Perimeter 2×6 studs to be 24" on center
  • Main Roof Trusses to be 6:12 pitch – 24" o.c. with energy heel. Porch trusses to be 4:12 roof pitch.
  • All exterior wall and roof steel to be McElroy 29 ga. Max Rib with Kynar 500 paint system and 40 year non-prorated warranty
  • All steel to be fastened using Woodgrip fasteners
  • All steel trims at ridge, gables, corners, windows, doors, base, hips and valleys, fascia, header, ceiling, etc. to be 29 ga. with Kynar 500 paint system.
  • Continuously vented profile ridge vent.
  • All eaves to be sealed using profile foam closures.
  • 24" deep overhangs to be finished using aluminum or steel vented soffit panels.
  • Windows to be vinyl white horizontal sliding units. Alternate color options are available upon request.
  • Doors to be all maintenance free steel doors and aluminum frames with locksets. Various options are available
  • Housewrap at all walls to eave line.
  • All walls to be insulated using R-21 batt insulation with a 4 mil poly vapor barrier at warm side of wall.
  • Ceiling to be insulated using R-40 blown fiberglass insulation with a 4 mil poly vapor barrier at warm side of ceiling.
  • Porch to have steel ceiling and trim.
  • Exposed porch beams and support posts. Railings available upon request.

Building Interior Specifications

  • Interior stud walls to be 2×4 and 2×6 construction with studs 24" on center
  • Interior doors to be 6 panel pre-hung pine doors with casing at both sides with lockset.
  • Vaulted trusses at common area.
  • Fully installed kitchen and bath cabinetry.
  • Bi-Fold closet doors to be pre-hung doors with casing at both sides and pull knobs.
  • Base trim to be 1×4 pine at all finished walls.
  • Windows to be prepped for drywall returns and pine sill with apron casing.
  • Closets to have one shelf with angle brackets and closet pole.
